Precision Cut-off wheel For Nanocrystalline Iron Core Cutting and Gapping
To cut and gap the Magnetic/iron core: magnetic core, magnetic powder core, magnetic ring, amorphous iron core, nanocrystalline iron core, electromagnet core, silicon steel sheet iron core, inductor core, transformer core, etc.
Advantages:
1. No burr after cutting ,cutting resistance 20-80% better than Euro-Japanese-American Brand Cutting wheel.
2. No smoke during cutting
3. Cutting port quality very smooth,no burn,no loose
4. Germany technique, original manufacturer,so quality is high and the cost is low.The customers who start to work with us then cooparete for long time.
5. The accuracy is less than ±0.05mm
AUTOFOR specially develops more than 30 series of precise cut-off Wheel for magnetic cores cutting and gapping,like amorphous, nanocrystalline, ultrafine crystalline,silicon steel, permalloy, beryllium film, transformer, ferrite, ferrosilicon, ferronickel, ferrosilicon-aluminium, which are suitable for different customers and products with different personalized needs. If AUTOFOR cutting wheel matching with AUTOFOR cutting machine,you can achieve cutting port "mirror "effect , even if you don't use secondary grinding, then greatly save labor costs.
Magnetic Core Cut-off Wheel specifications (mm)
| Model | OD | THK | ID | Line speed(m/s) |
| CX150 | 150 | ≥0.3 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| CX180 | 180 | ≥0.3 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| CX205 | 205 | ≥0.4 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| CX230 | 230 | ≥0.4 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| CX255 | 255 | ≥0.5 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| CX305 | 305 | ≥1.0 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| CX355 | 355 | ≥1.2 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| CX405 | 405 | ≥1.5 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| CX455 | 455 | ≥1.5 | 12.7/16/25.4/30/31.75/32/40/50 | 40--50 |
| CX510 | 510 | ≥2.0 | 12.7/16/25.4/30/31.75/32/40/50 | 40--50
|
Environmental Protection
AUTOFOR is committed to providing high quality and environmental friendly products for customers. We always put the ISO14001 environmental system into practice. All products of its brands have passed SGS environmental certification. The products are harmless to the environment and human body, and they can achieve zero pollution and zero emission. Let us protect the environment and build a beautiful home together by starting with AUTOFOR!

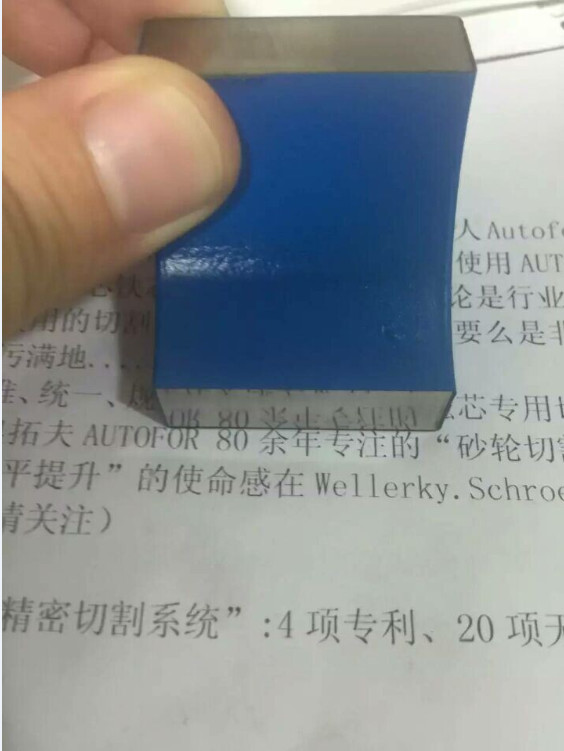

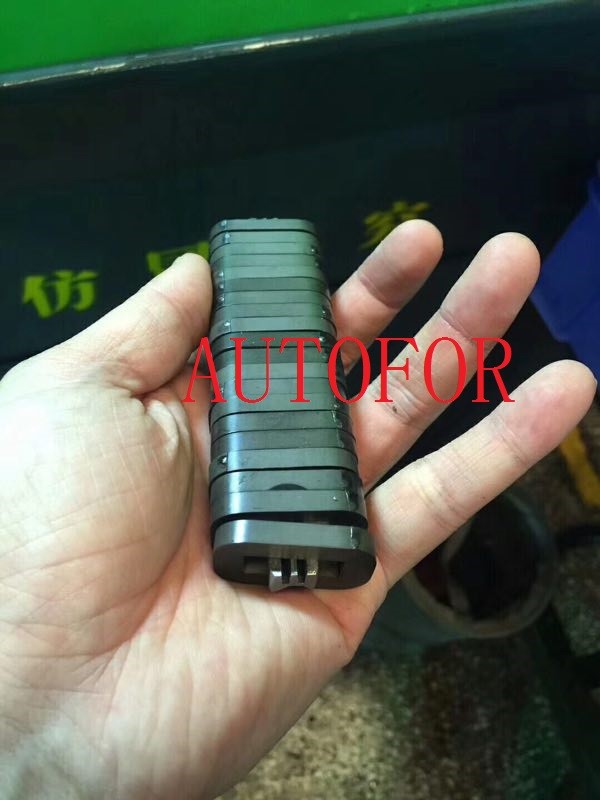

Cutting effects:
Application field
AUTOFOR products are widely used in aerospace, automobile, energy, electronics, education and other fields. In the industry of precision cutting technology, it has been in the forefront of domestic counterparts.
